Description

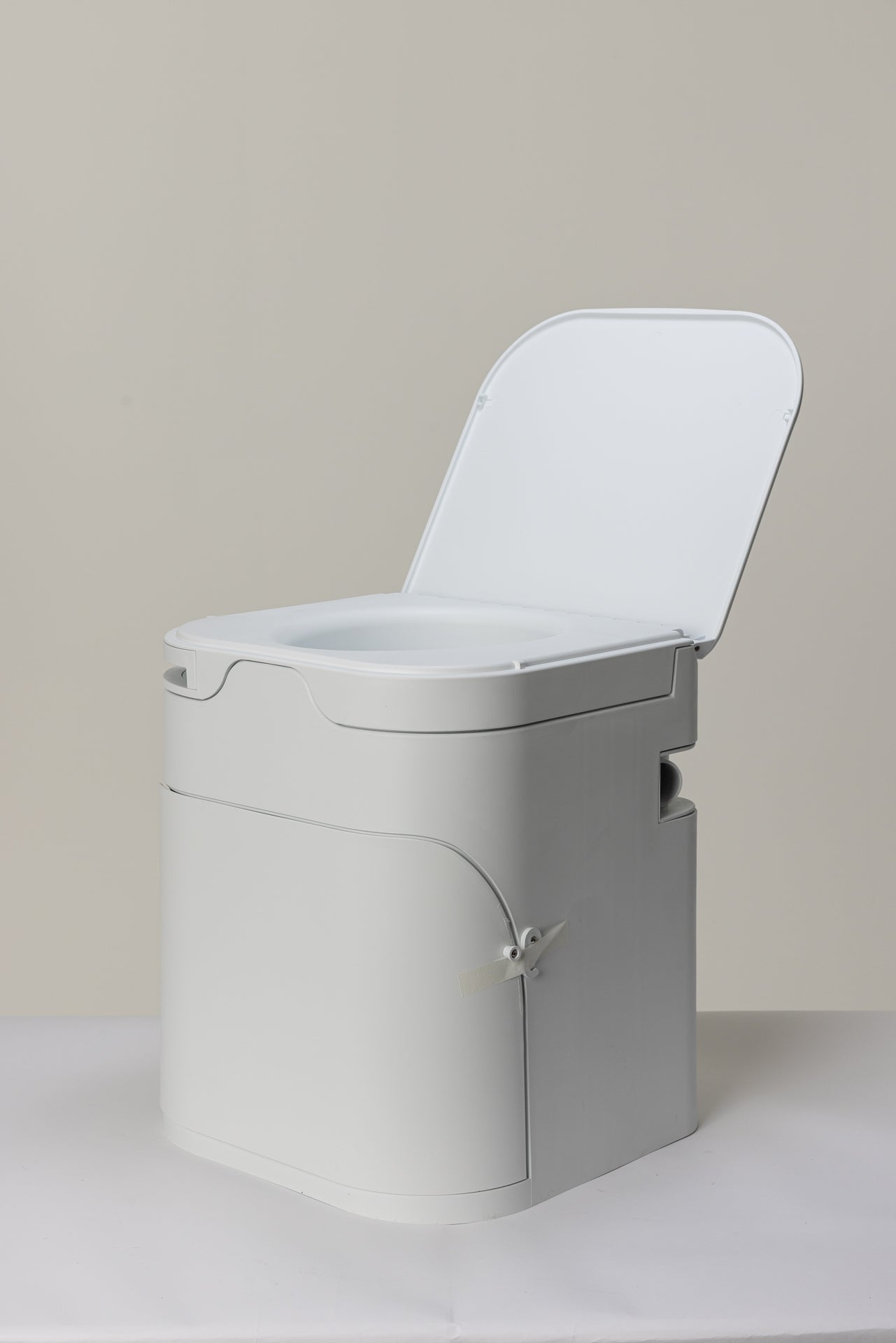

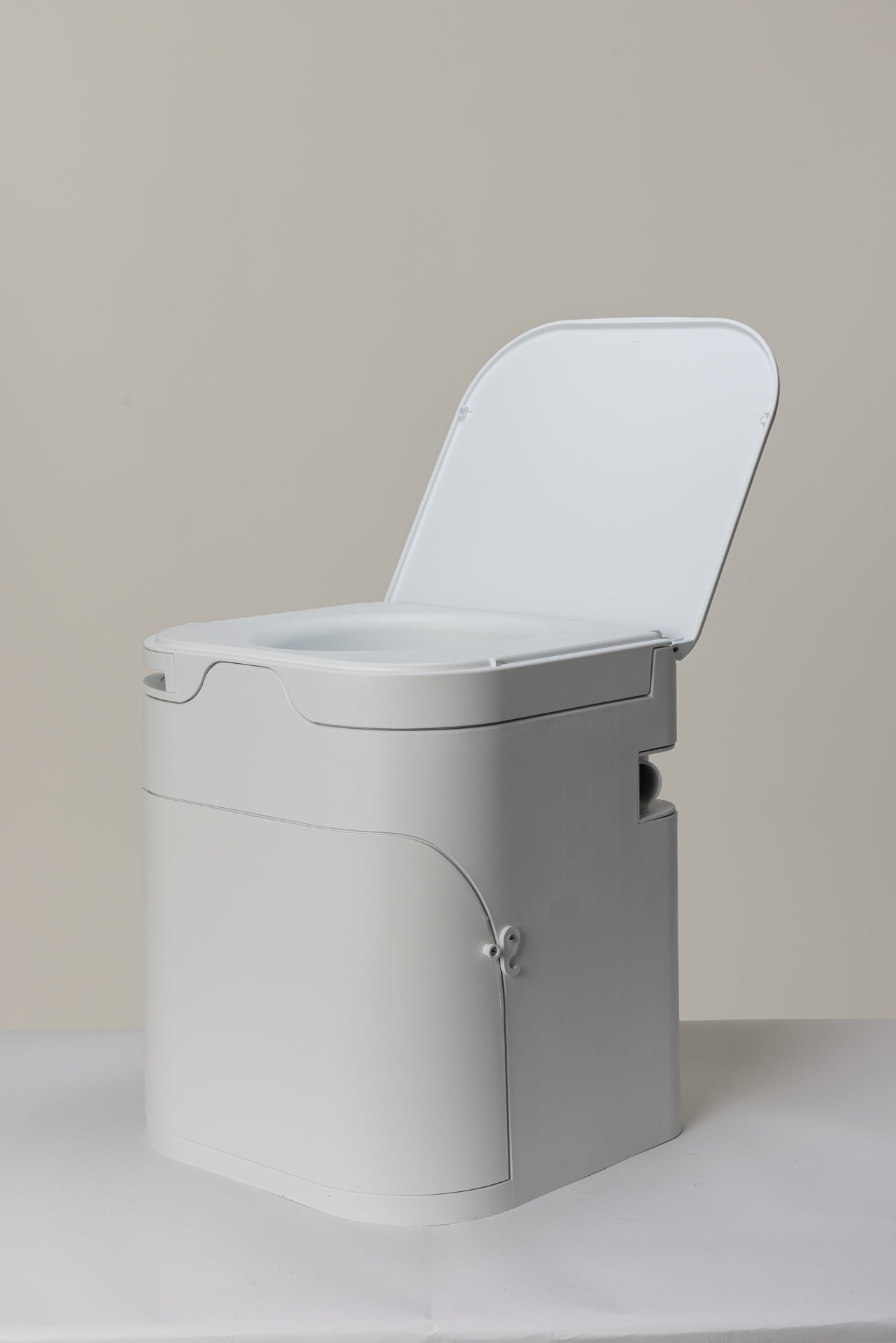

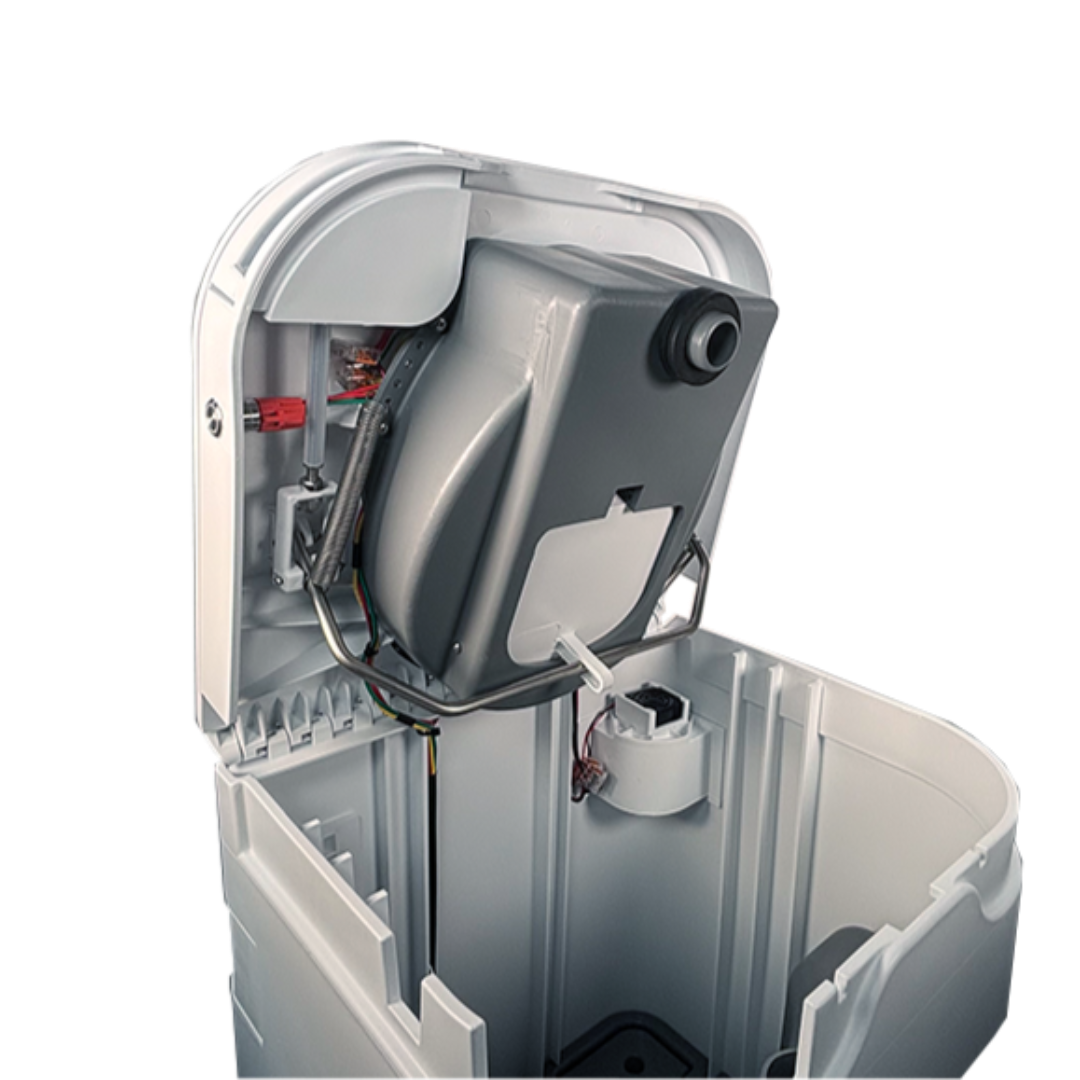

The OGO™ Origin Toilet is a waterless composting toilet designed to be the most aesthetic product that fits in the smallest of spaces.
While other composting toilets are limited in their capabilities, OGO™ Origin has it all! We’re smaller, sleeker, modern, and leave a smaller footprint than the leading composting toilets. We make everyday life easier.
Advantages of the OGO™ Origin

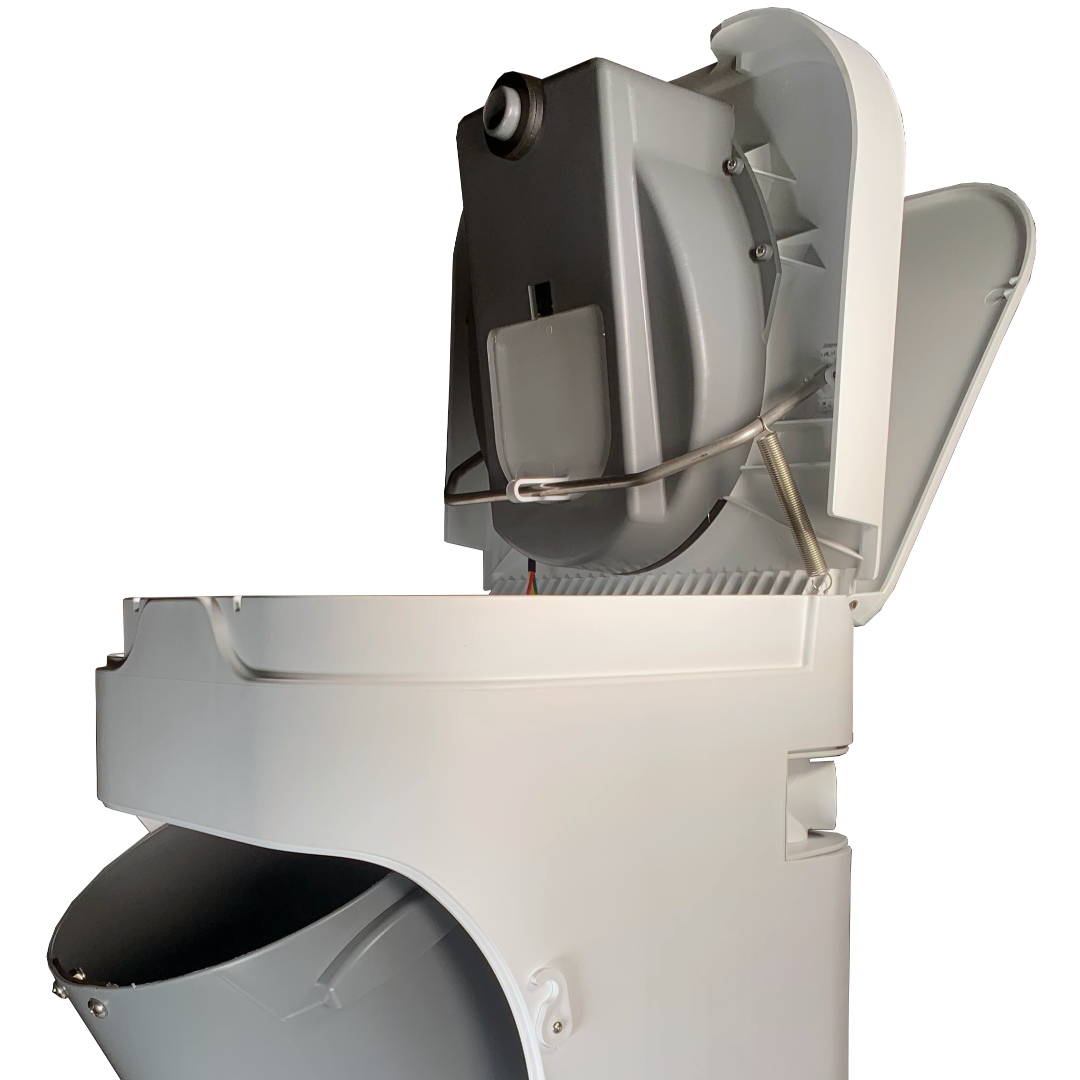

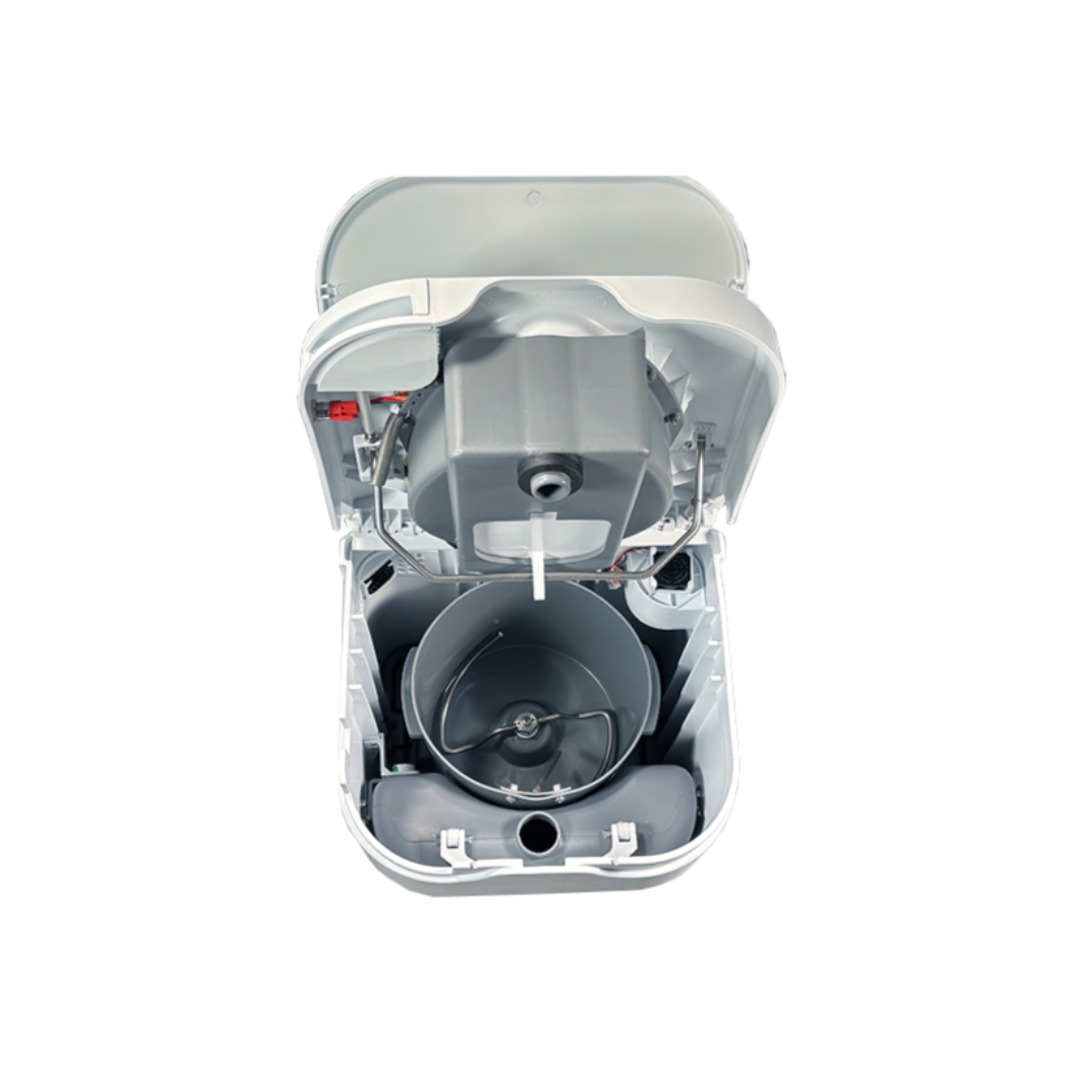

The OGO™ Origin works by diverting urine away from solids waste using our patented trap door system. OGO™’s electric agitator “flushes” after every solids use with the push of a button and our urine sensor indicates when you need to empty the bottle.
Dimensions: The toilet is 38cm deep by 40.6cm wide by 47cm tall.
Weight: It weighs about 13kgs.

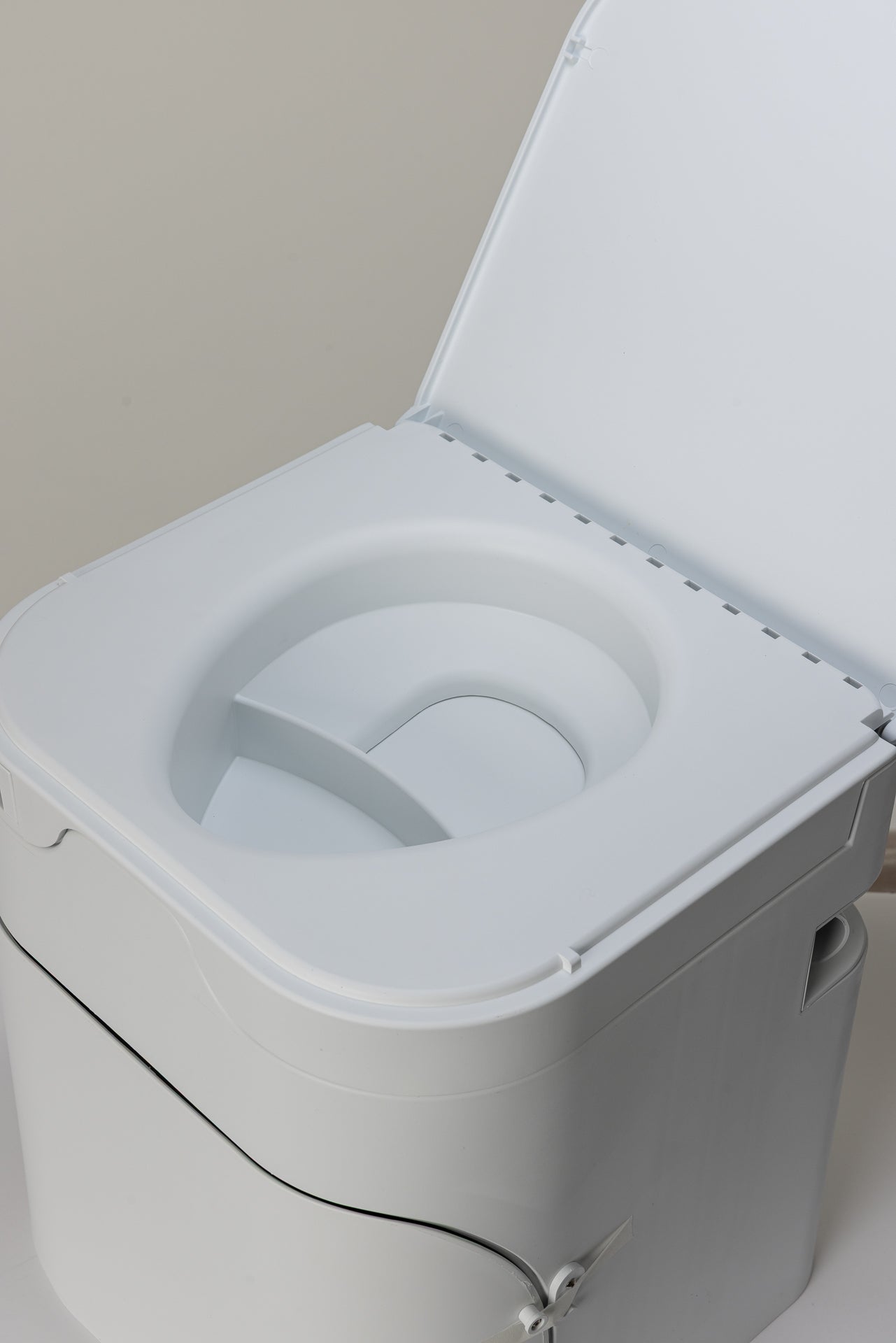

Quality: Made of high-quality polypropylene (PE). Ergonomically shaped seat.
Operation and cleaning: After each use, the solids are mixed with coir peat (compost medium). With the OGO™ Origin, all you have to do is press the button for the electric agitator, it couldn’t be more uncomplicated. For cleaning, all you need is Compost Toilet Cleaner Stimulant or a spray bottle with vinegar solution.

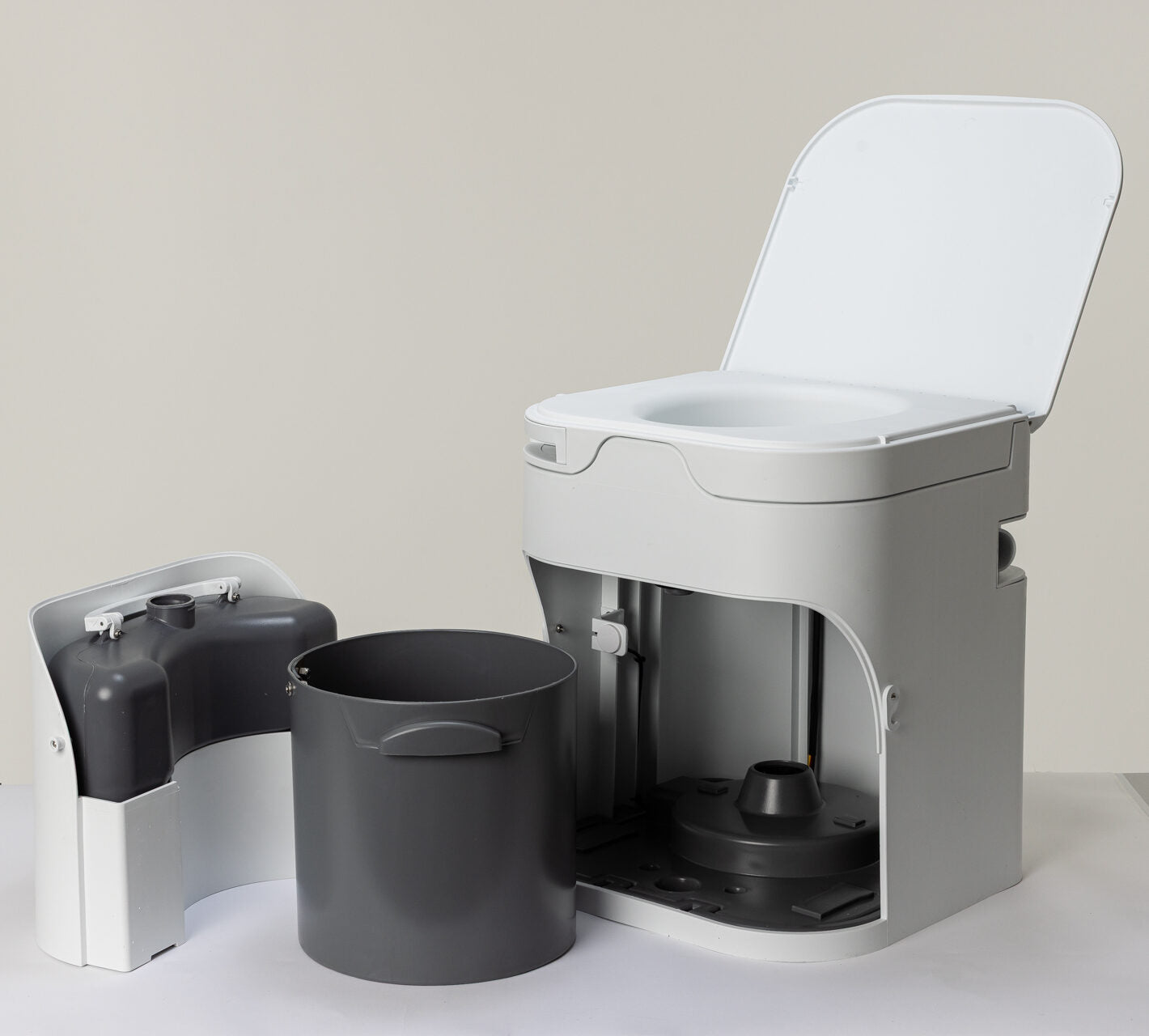

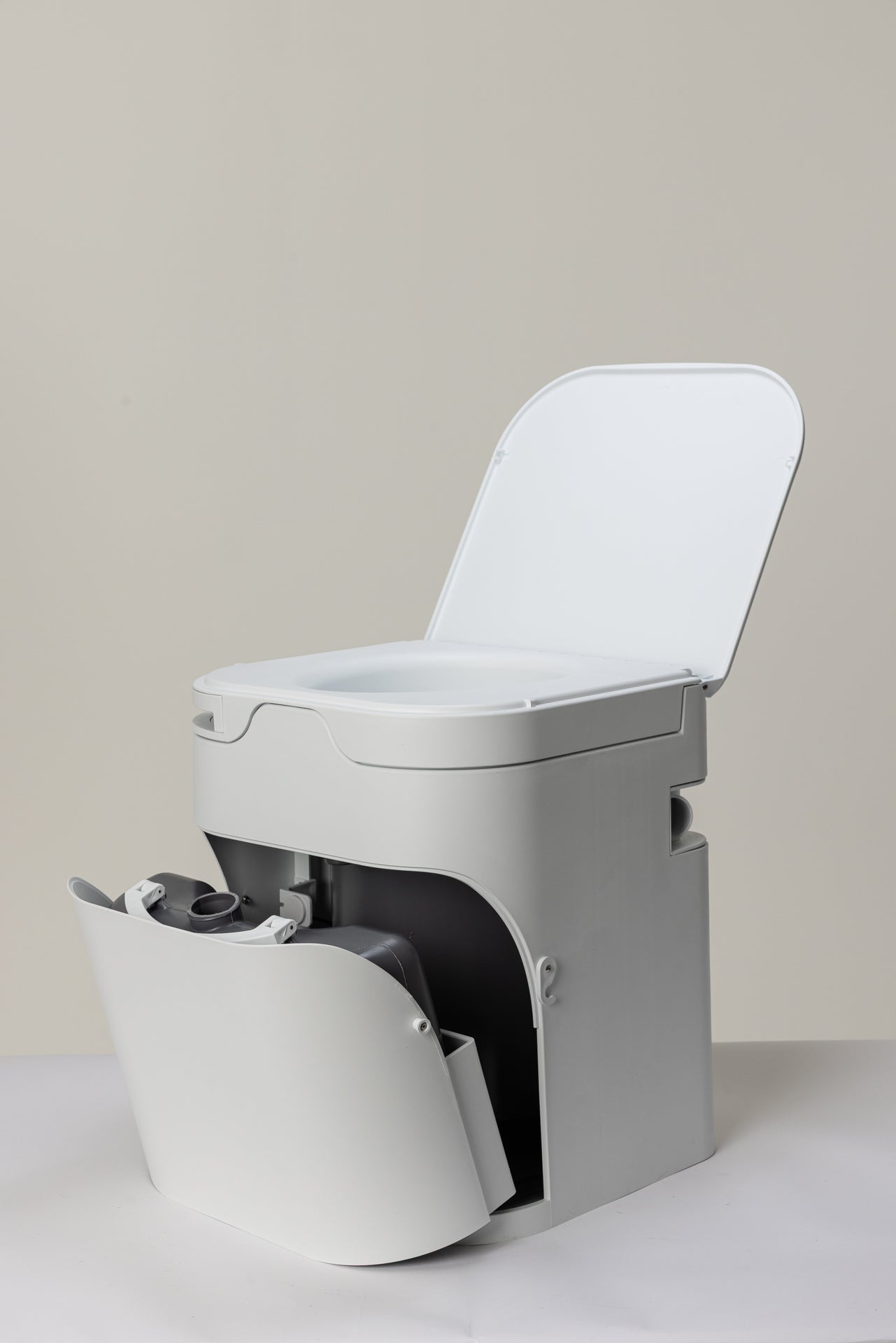

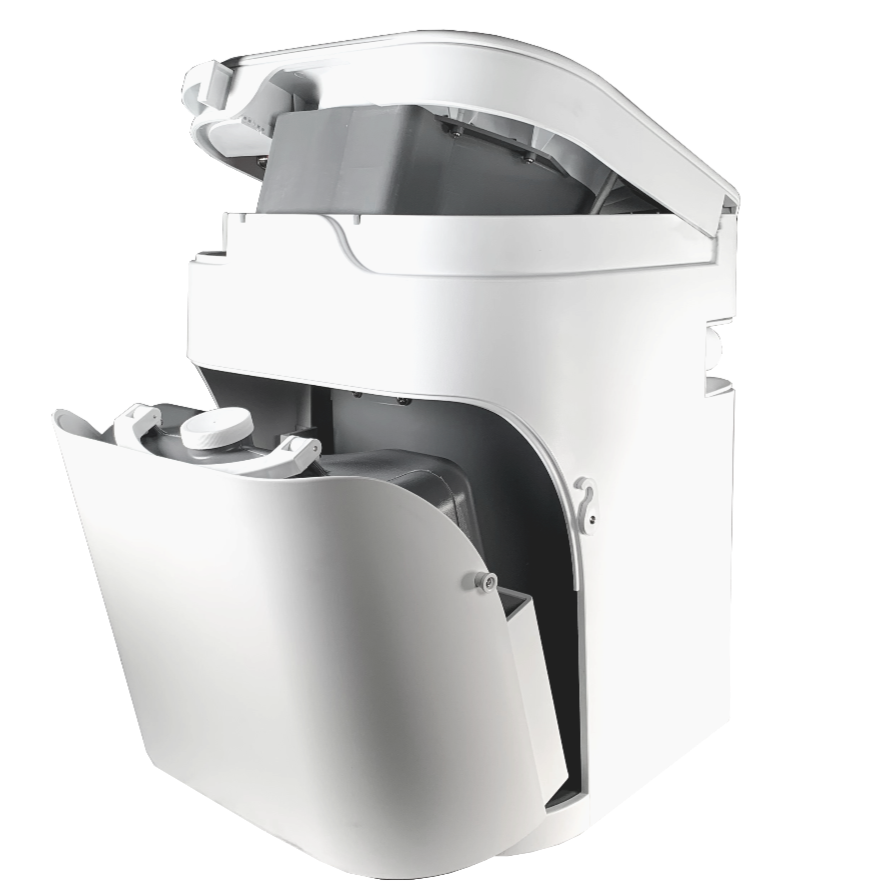

Urine Bottle: Urine bottle holds just over 9 litres of liquid
Emptying: We recommend emptying the urine bottle every 24-48 hours. The solid waste bin has a capacity of up to 30 usages. Disposal as residual waste or in home compost (Must not be used as fertiliser for edible plants).
What’s In The Box
- The OGO™ Origin Toilet
- Installation and user manual
- Mounting Screws
- Vent Hose – 90cm Length
- Urine Bottle Cap
- 12V Power Cable (for install to into a wall outlet a 12V DC power adapter is required to plug into a 240 AC outlet)
- Compost Toilet Cleaner Stimulant (500ml Spray Bottle)
- Coir Peat Brick
All required parts are supplied, except:
- External exhaust air cover such as Shell Vent or Marine Vent, as each application requires a different cover. Common are e.g. gill plates in various sizes (e.g. if you already have an old opening), for a new installation a size of approx. 6 cm diameter is sufficient.
- We would highly recommend a fly screen or a comparable solution with gauze to prevent insects from entering the ventilation hose.
Installation Tips
Venting / hose: For some installation variants, longer hose lengths might be required. In these cases, we recommend extending the supplied hose with a commercially available HT pipe DN40. You can also use this pipe as a wall duct for the exhaust air. Cut it to the right length (wall thickness + 5 cm) and glue it in place. Even if it is not absolutely necessary with the OGO™ Origin, it is recommended to always install a flexible piece of hose towards the toilet so that it can be pulled off for possible maintenance work.
Floor construction: Depending on the floor construction, you will need appropriate screws (4 pieces).
Power connection: Ensure a 10A fuse and adequate cable thickness. If you want to operate the toilet on a 230 volt mains supply (house connection), this can be done with the help of a power supply unit. You will need a 12V 10A power supply unit with a 5.5 mm x 2.5 mm hollow plug, such as those used for monitors.
