Description

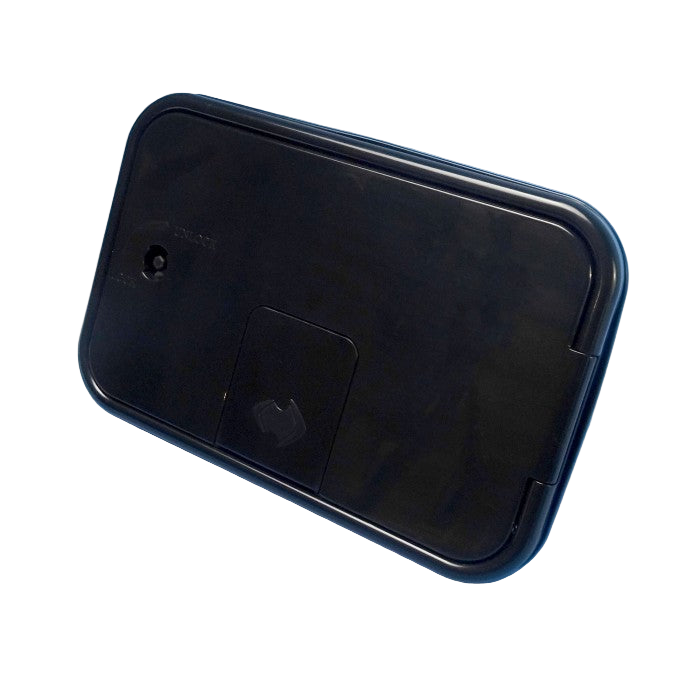

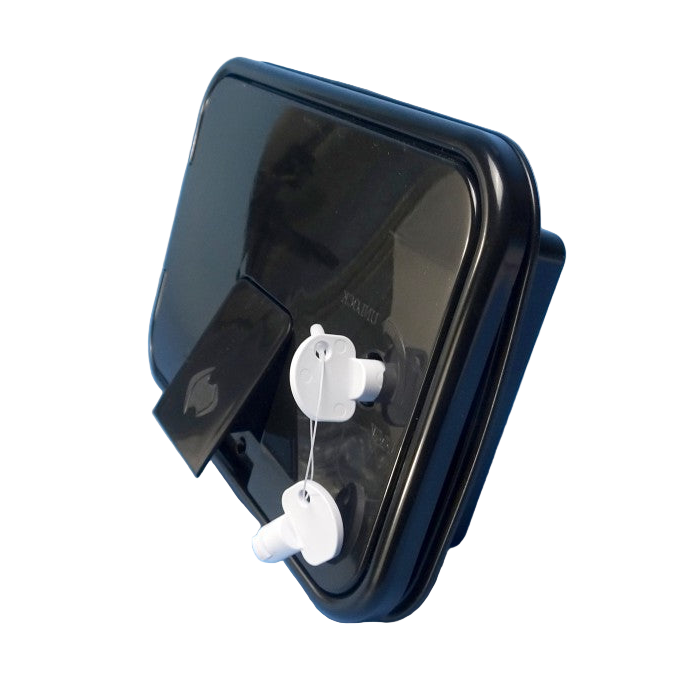

This lockable water filler measures 230mm by 153mm and needs an 83mm recess. It comes with a Clip-On fitting compatible with mains pressure systems. One water tank filler is provided, with a built-in space for an optional second filler (see 800-01092 for the additional tank filler). The door can be secured while the hose remains connected to the van. A rubber gasket is included to simplify installation, and two plastic keys come with a 1-year warranty.
- Model: 800-01088
- Brand: Jayco
- Cut out side required 185mm x 110 with 8mm radius corners.
- Overall dimensions 227mm x 150mm with 25mm radius corners.
- Screw Holes 95mm apart #6.
- Overall protrusion front to rear 100mm.
- Protrusion from wall to front 12mm.
- Opening flap (small) 65x55mm.

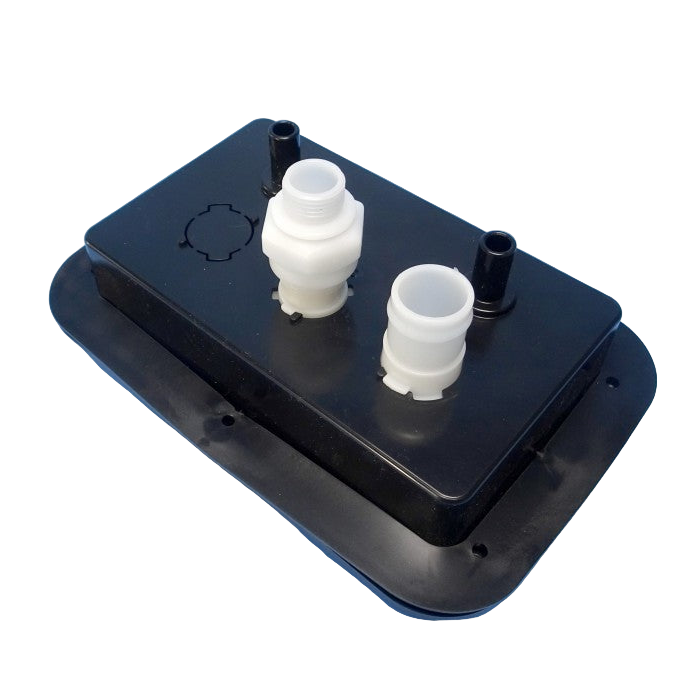

- Mains pressure to 1/2 inch BSP
- Tank filler to 25mm barb
- Space for secondary tank filler
- 12mm breathers
- Shipping Weight: 400 grams.
- Shipping Dimensions: 25 cm x 17 cm x 8 cm.
